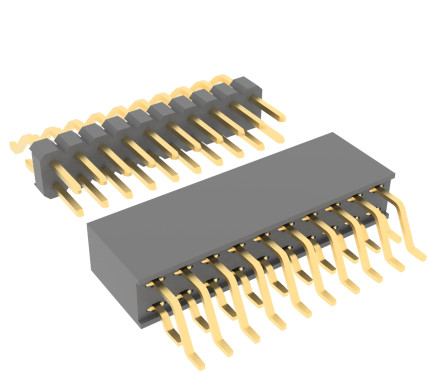

2.54mm卧式排针排母连接器
Current Rating :3AMP
Insulator Resistance :1000MΩ Min.
Contact Resistance :20mΩ Max.
Voltage Resistance :AC 500V
Operating Temperature :-40℃ ~ +105℃
Metallic Material :Copper alloy
Metal Treatment :Ni(30~50u")+See description
Insulator Material :PA6T/PA9T/LCP UL94V-0
Resistance To Soldering Heat :260°C ±5°C
